**Eccentric Sleeve (Bushing): Precision Adjustment Through Off-Center Design**

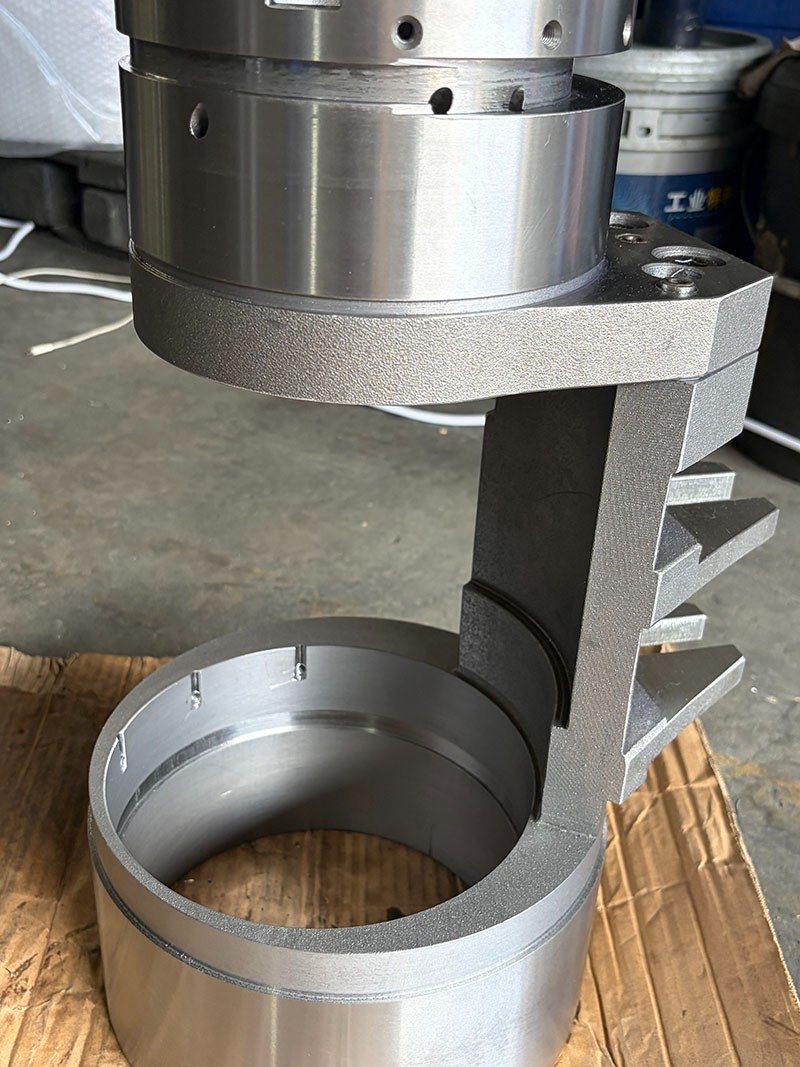

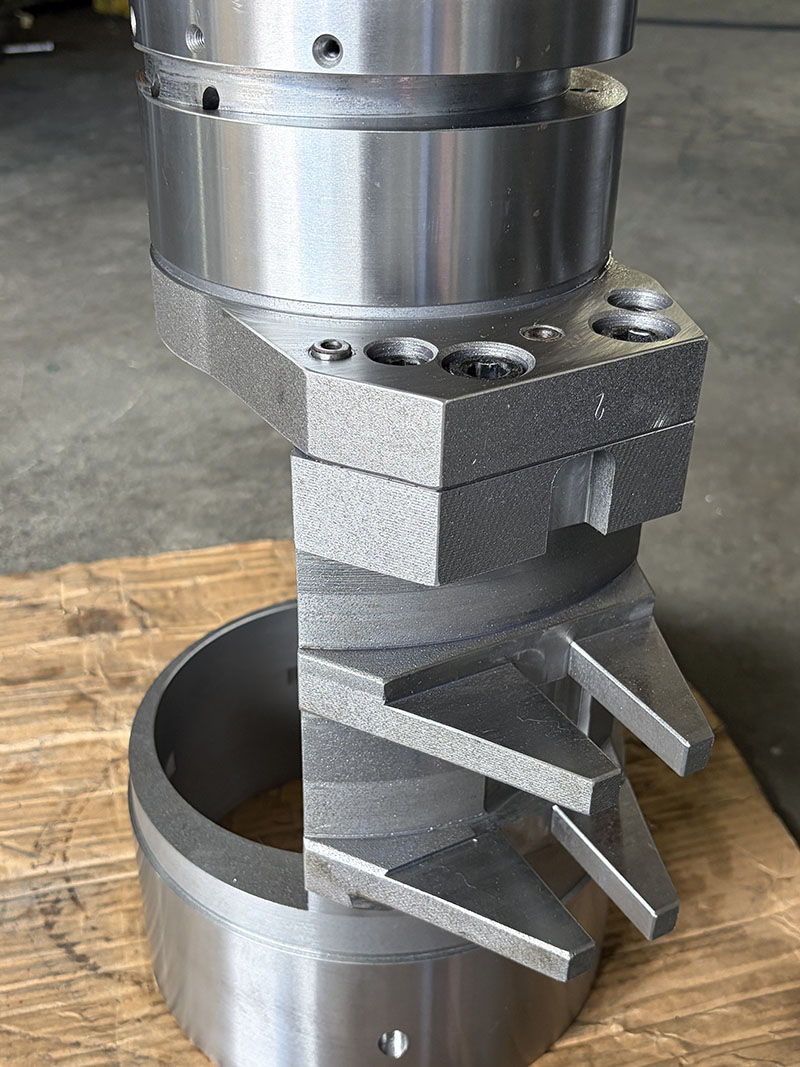

An eccentric sleeve, also known as an eccentric bushing or offset bushing, is a cylindrical mechanical component whose inner and outer diameters are not concentrically aligned—meaning the center of the bore is deliberately offset from the center of the outer cylindrical surface. This seemingly simple geometric deviation transforms the sleeve into a powerful adjustment tool, enabling precise positioning, tensioning, or alignment modifications in rotating and reciprocating machinery.

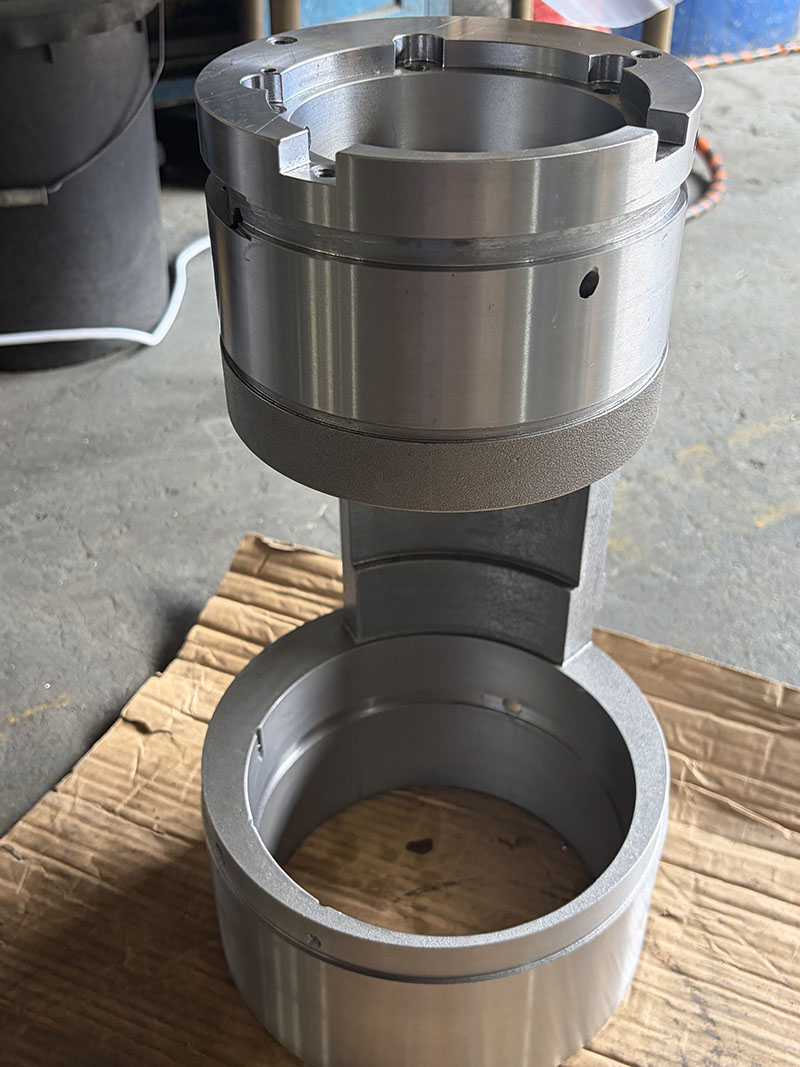

The fundamental principle is straightforward: rotating the sleeve within its housing changes the relative position of the shaft axis passing through its bore. The amount of eccentricity—typically ranging from fractions of a millimeter to several millimeters—determines the adjustment range. By simply turning the sleeve, operators can fine-tune shaft centerline positions, adjust belt or chain tension, eliminate gear backlash, or correct minor misalignments without disassembling the entire machine.
Eccentric sleeves find widespread applications across various industries. In conveyor systems, they are used to tension drive chains and belts by moving idler shafts. In printing presses and packaging machinery, they enable precise registration adjustments. In automotive engineering, they appear in camshaft timing mechanisms and rear axle alignment systems. In pump and compressor assemblies, they facilitate precise rotor-to-stator clearances. Some designs incorporate locking screws or clamp rings to secure the sleeve once the desired position is achieved.

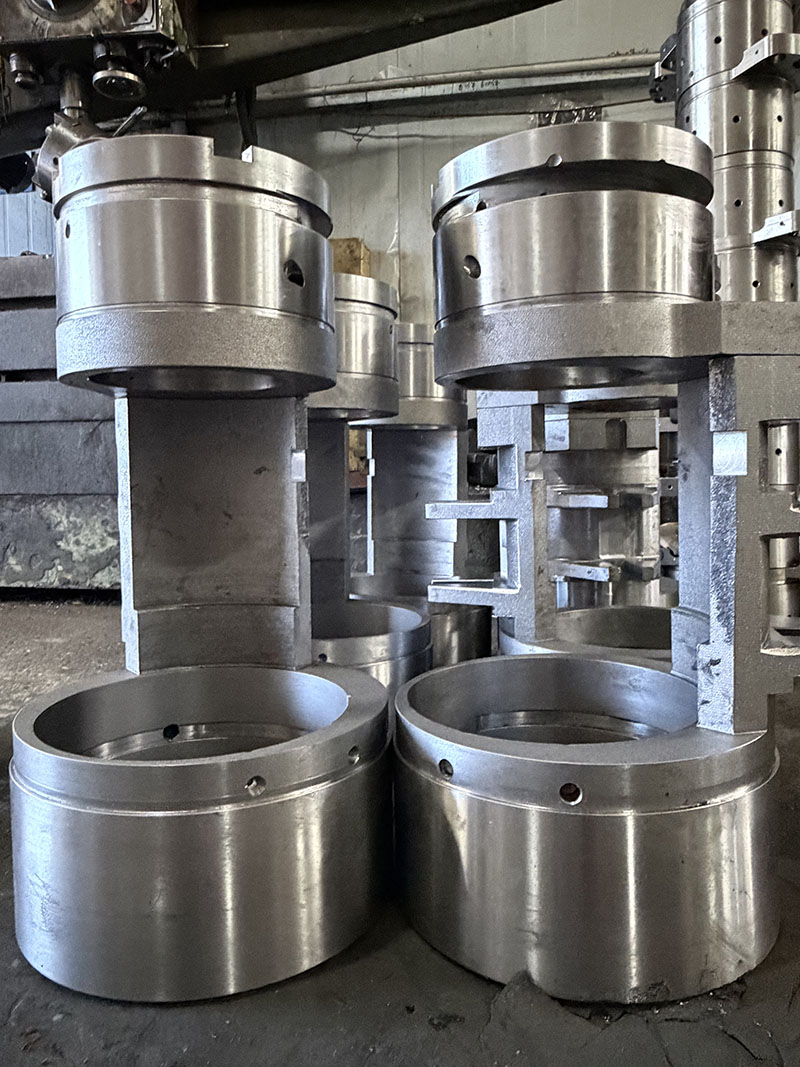

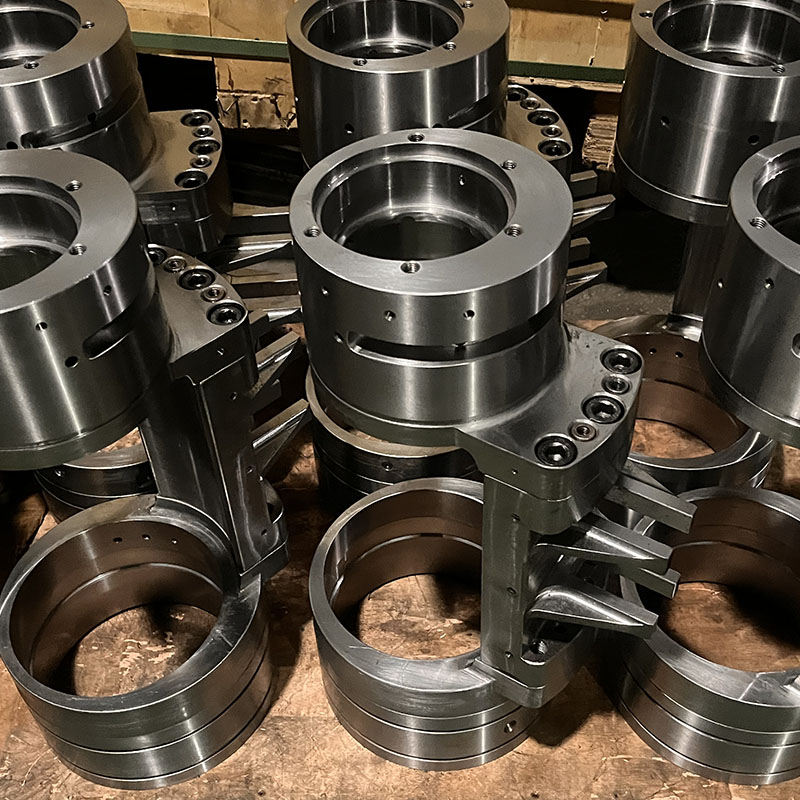

Different configurations exist, including single-offset sleeves, double-eccentric sleeves, and sleeves with built-in bearings. Materials range from hardened steel and bronze to advanced polymers, depending on load, speed, and environmental conditions. Key advantages include simplicity, low cost, tool-less adjustability, and the ability to make micro-adjustments in confined spaces. Limitations include limited adjustment range, potential loosening under vibration, and the need for periodic repositioning.
While often overlooked in favor of more complex adjustment systems, the eccentric sleeve remains an elegant solution to a common engineering challenge—offering precise, reliable, and maintenance-friendly adjustment in countless mechanical systems worldwide.
