**Drum Gear Coupling: Robust Flexibility for Heavy Loads**
A drum gear coupling is a high-performance mechanical coupling designed to transmit torque between two rotating shafts while accommodating angular, parallel, and axial misalignments. It belongs to the family of gear couplings but features a distinctive drum-shaped (crowned) tooth profile on the external gear, which significantly enhances its adaptability and load distribution capabilities.

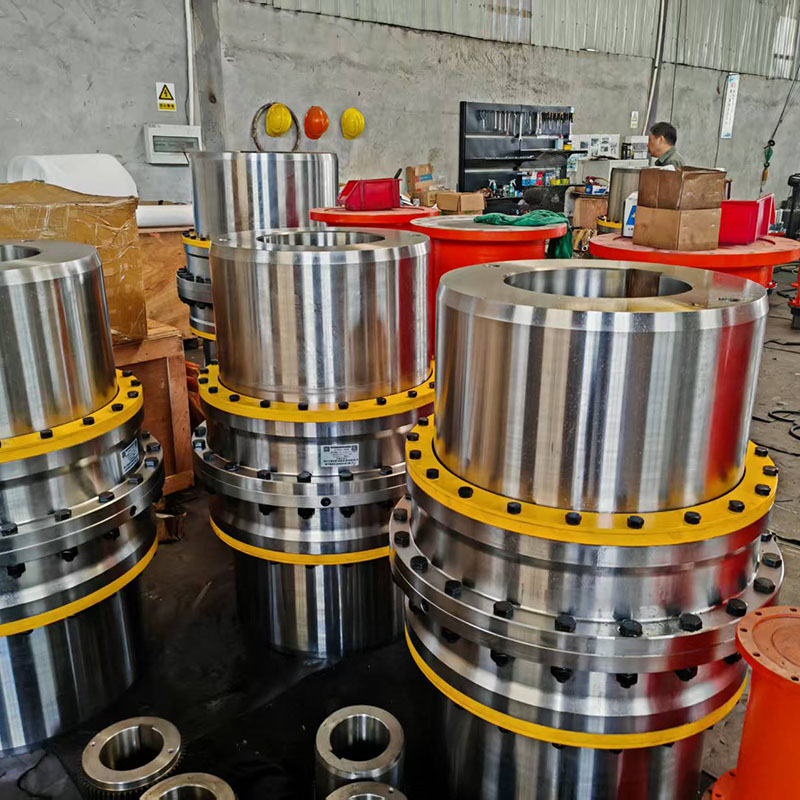

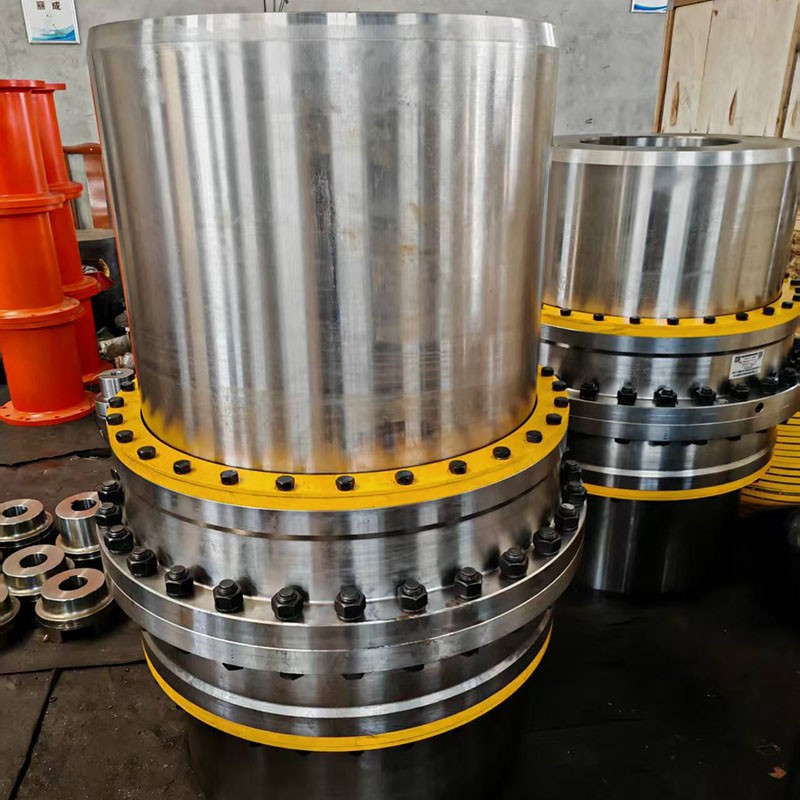

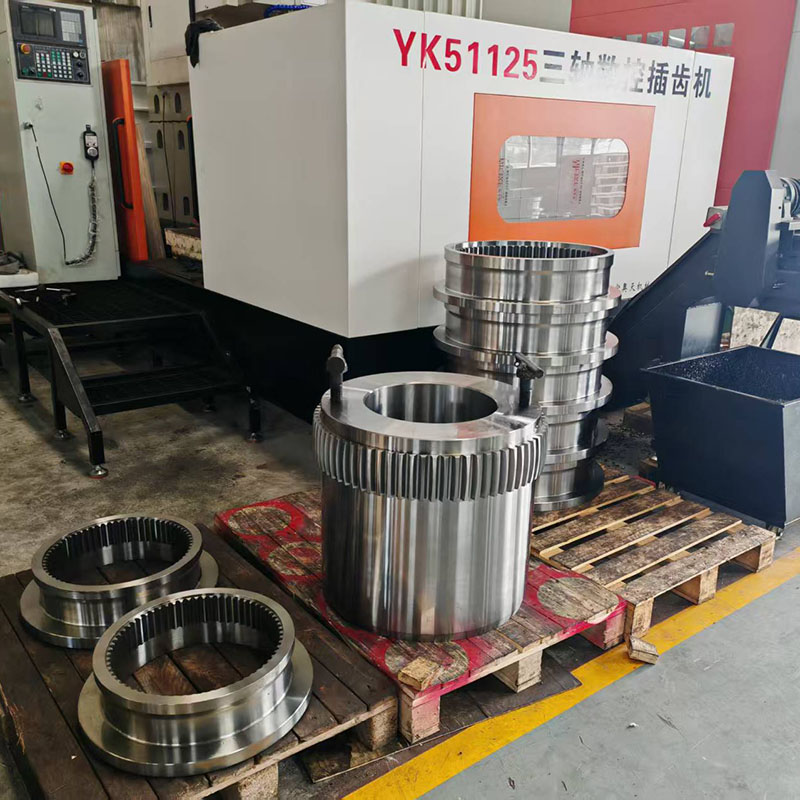

The coupling typically consists of two hubs with external drum-gear teeth, connected by a one-piece or two-piece sleeve with matching internal straight teeth. The drum-shaped tooth surface—curved along both the tooth length and height—allows for controlled rocking movement under angular misalignment, reducing edge-loading and stress concentration that commonly plague straight-tooth gear couplings. This crowning design ensures that the contact pressure remains evenly distributed across the tooth surface even when shafts are not perfectly aligned.
Drum gear couplings are engineered for demanding applications where high torque, heavy shock loads, and substantial misalignments coexist. They are widely used in steel mills, mining conveyors, cement kilns, paper machines, and large marine propulsion systems. Their load capacity is impressive—often handling torques ranging from a few thousand to several million Newton-meters—while accommodating angular misalignments up to 1.5 degrees and axial displacements through sliding action.
Key advantages include exceptional torque density, compactness relative to their capacity, long service life under proper lubrication, and the ability to operate in harsh environments with dust, moisture, or high temperatures. However, they require meticulous lubrication—usually with extreme-pressure gear oils—to prevent wear and fretting corrosion. Regular inspection of tooth condition and backlash is essential for reliable operation.
In essence, the drum gear coupling represents the perfect balance between flexibility and strength. While the Cardan shaft excels at large-angle transmission and the oil film bearing masters fluid dynamics, the drum gear coupling offers unmatched robustness for heavy industry—delivering reliable power where misalignment is inevitable and failure is not an option.
