Cardan Shaft (Universal Coupling): Power at Any Angle
A Cardan shaft, commonly referred to as a universal coupling or U-joint, is a mechanical device used to transmit torque and rotational motion between two shafts that are not collinear—meaning their axes intersect at an angle. Named after the Italian mathematician Gerolamo Cardano, who described its principle in the 16th century, this coupling allows for angular misalignment of up to about 25 degrees while maintaining continuous power transmission.

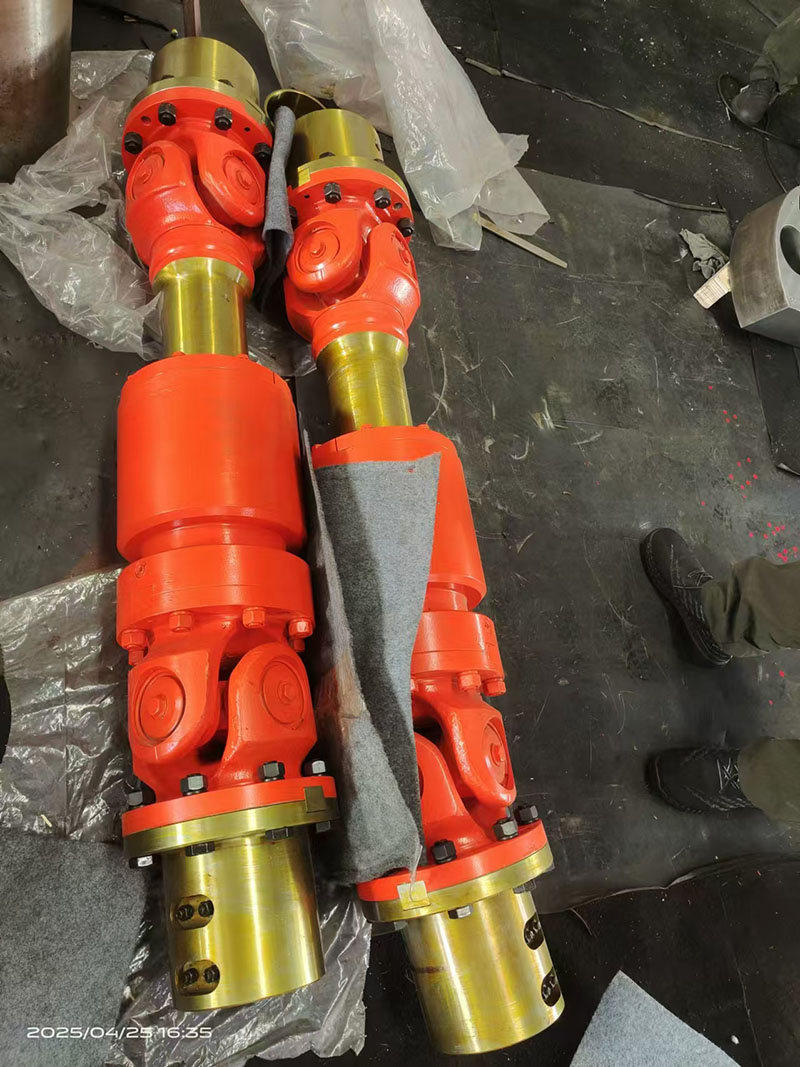

The simplest and most widely recognized form is the single Hooke's joint, consisting of two yokes connected by a cross-shaped spider with four needle bearings at its ends. As the driving shaft rotates, the spider transmits motion through the bearings to the driven yoke, accommodating angular movement in any direction. However, a single universal joint produces a non-uniform velocity—the driven shaft accelerates and decelerates twice per revolution. To achieve constant velocity, two joints are paired in a Cardan shaft assembly, with their yokes aligned in phase, effectively canceling out speed fluctuations.

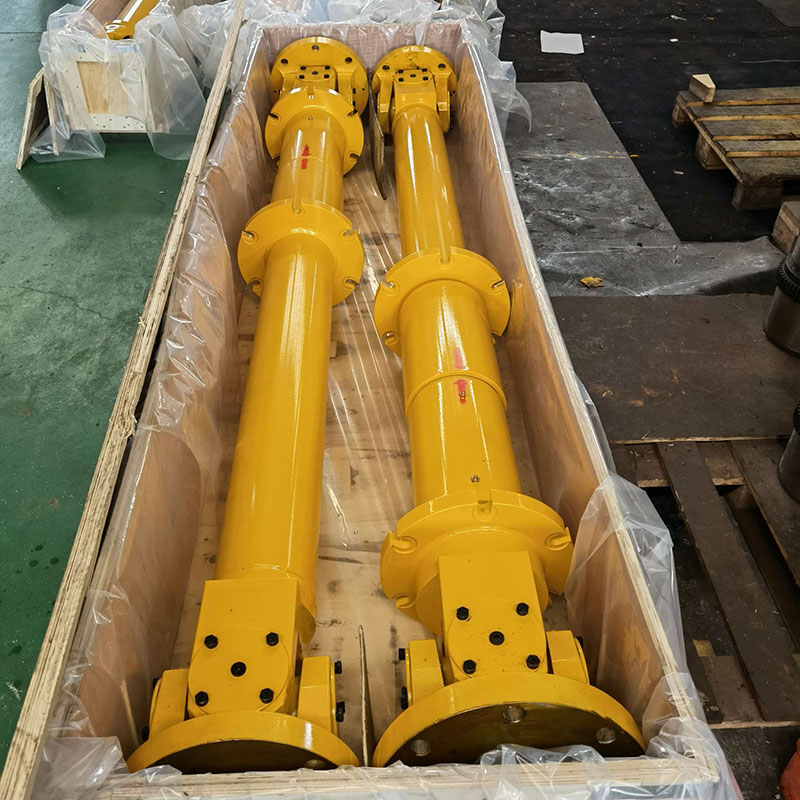

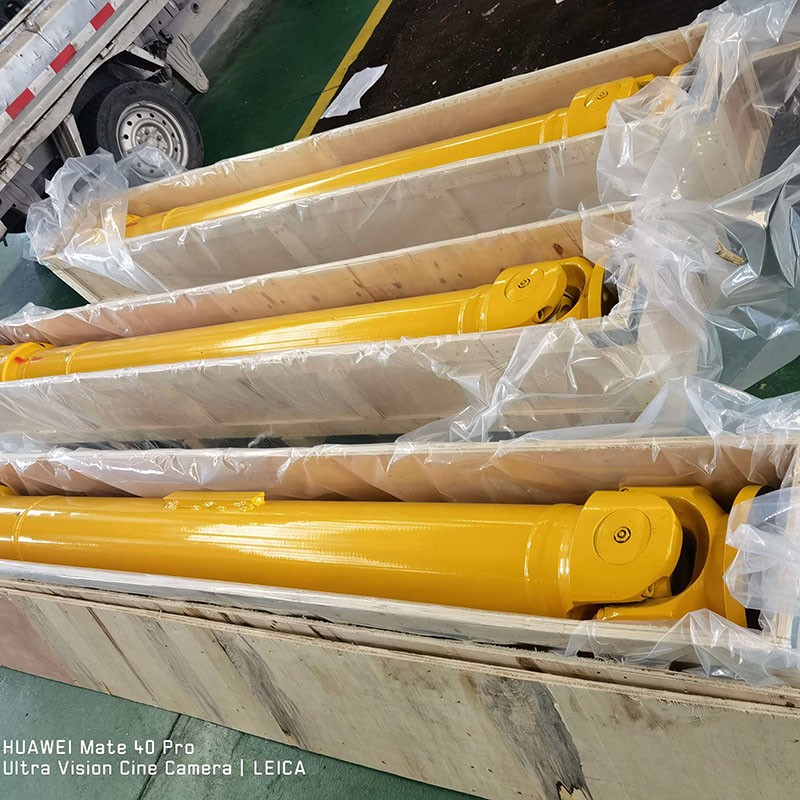

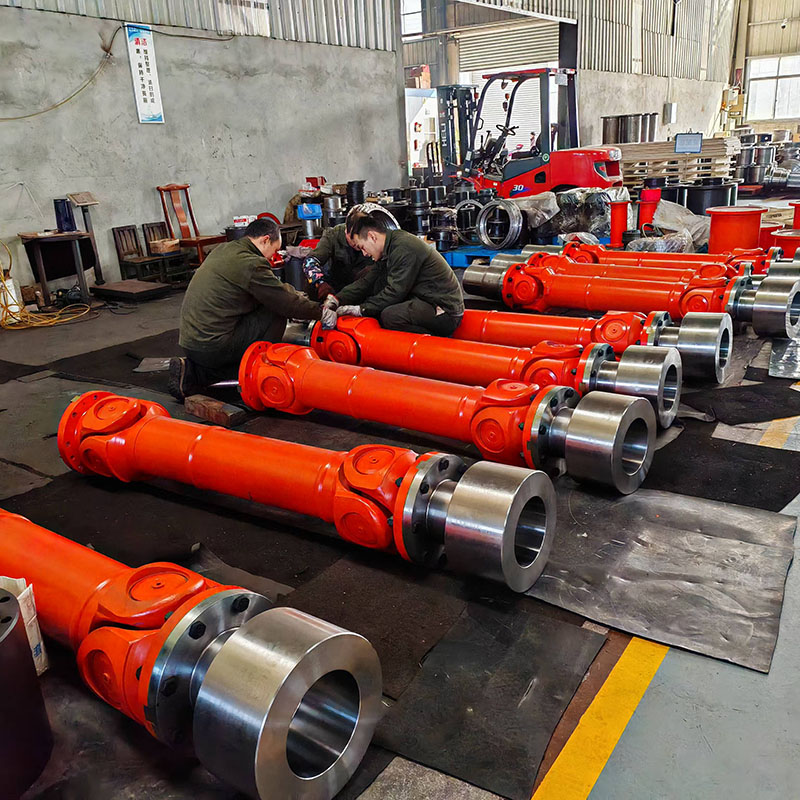

Cardan shafts are engineered for rugged, high-torque applications where flexible couplings or gear couplings cannot handle large angular displacements. They are commonly found in rear-wheel-drive vehicles, agricultural machinery, industrial rolling mills, marine propulsion systems, and railway equipment. Depending on the application, designs vary from lightweight automotive units to massive, heavy-duty shafts with telescopic sliding sections that accommodate length changes during operation.
Key advantages include simplicity, durability, and the ability to transmit high power under harsh conditions. However, they require regular lubrication of their needle bearings and periodic inspection for wear in the spider and yokes. Their inherent vibration at high angles limits their use in precision applications, but with proper design and maintenance, the Cardan shaft remains one of the most reliable solutions for transmitting power across misaligned rotating shafts—bridging the gap where rigid coupling simply cannot reach.
